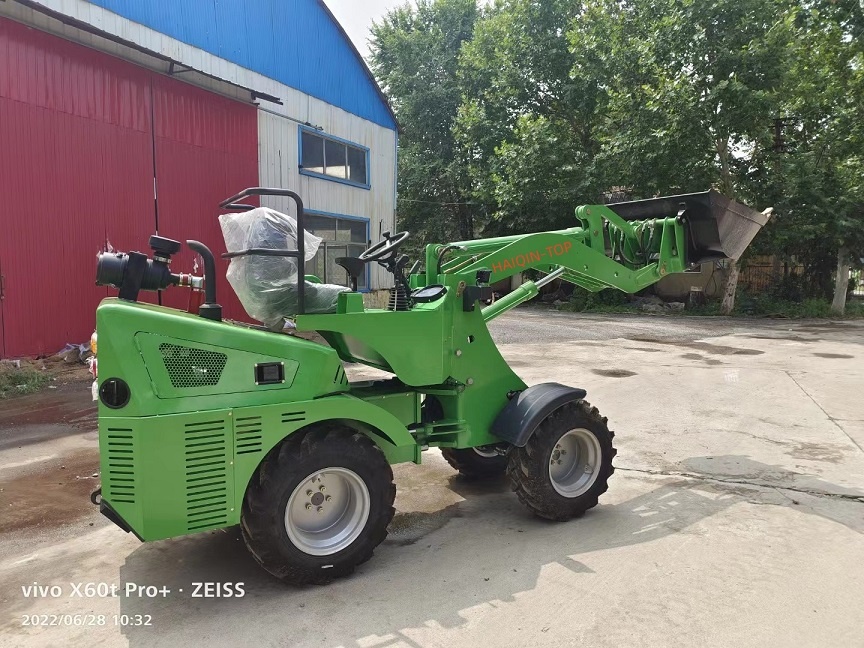

Mini loader HQ906 with front seat design
Mini loader HQ906 with Euro 5 engine,The seat turns at the front frame
Rated load： 600kg
Operating Weight ：2000kg
Bucket width： 1200mm
Bucket capacity： 0.25 m3
Maximum climbing angle： 30 °
Minimum ground clearance: 230mm
Wheel base of tire ：1540mm
Avant loader Track width ：900
Discharge angle :49 °
Maximum unloading height :2200mm
Unloading distance :476mm
Maximum lifting height :3358mm
Overall size (L * W * H): 4100x1150x1900mm
Minimum turning radius: 2691mm
Bucket retraction angle: 45 °
Engine model: Xinchai 3b11x40 Euro 5 emission
Engine power: 18.2KW
Transmission system:Full hydraulic closed transmission
Working oil pump flow: 42L/min
Traveling motor displacement :245ml/R
Maximum working pressure :200bar
Maximum speed :20km/h
System voltage :12V
Power supply model :65Ah
Tire type: 10.0/75-15.3
Hydraulic oil tank volume: 45L
Fuel tank volume: 45L
Engine oil :7.1L
