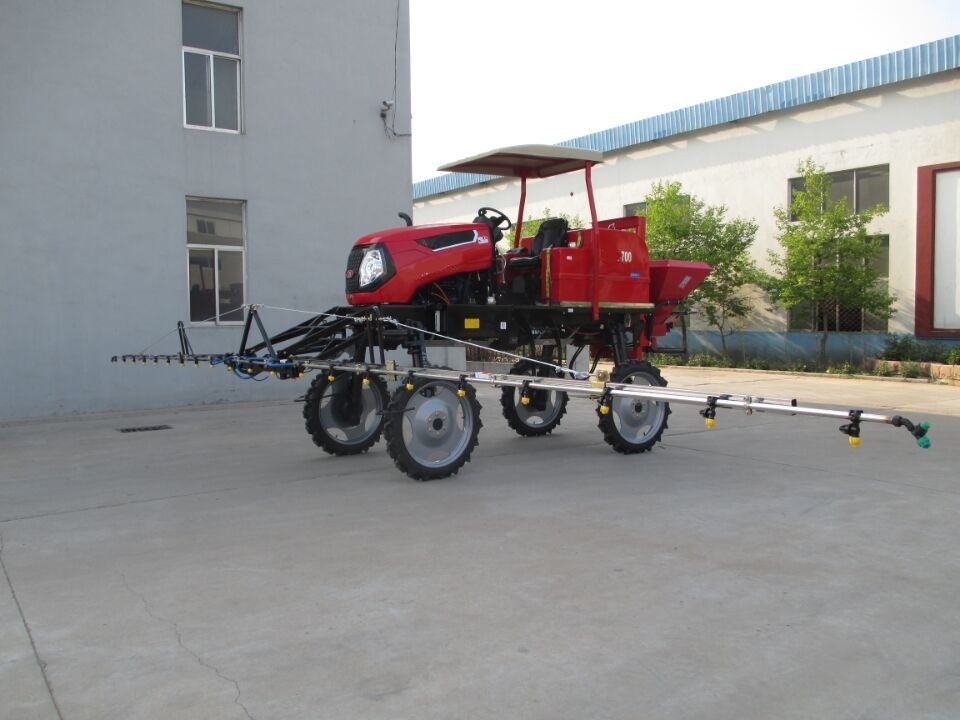

Self propelled spray boom sprayer (HQPZ-700)
Self propelled spray boom sprayer ( HQPZ-700) Features :
(1 ,Electric spray rod, control soft, simple and convenient.
(2,Four wheel steering, steering convenient, less pressure, more money, more money, a unique system, 5 minutes straight.
(3 ,Lifting spreader, add fertilizer convenient, uniform fertilization.
(4, Unique hanging gear mechanism, convenient and easy to operate.
(5, Follows the loading machine frame and the hydraulic system design, the anti - destructive force is strong, durable.
(6, Spray width, large capacity, high work efficiency, better performance: good atomization, drift prevention and treatment spray rod design
of forging aluminum corrosion segmented. Automatic telescopic, easy to operate, the unique design of the three cylinder shunt valve configuration,
good control, compact structure, beautiful appearance, excellent practicality.Can be widely used in soybean, wheat, rice, potato and other crops and Chinese herbal medicine, grass,
garden flowers and other plants in large areas of pre sowing soil treatment, seedling and pest control, etc.. This machine is suitable for all kinds of pesticides, such as herbicide spraying operations.
Machine |
Model |
HQPZ-500 |
Tyre |
self-propelled |
|
Size (mm) |
4150*1680*2270 |
|
Weight(KG) |
1390 |
|
Spray nozzle (m) |
12 |
|
Working pressure of spray rod (MPa) |
0.3-0.4 |
|
Power |
Type |
Changchai |
Rated power(KW/rpm) |
22KW |
|
Starting |
Electric |
|
medical kit |
Capacity(L) |
500 |
Mixed mode |
Jet mixing method |
|
Matching nozzle |
Mode |
fan-shaped |
Number |
23 |
|
Cone angle of fog |
110 |
|
Single spray (L/min) |
1.386/0.4MPa |
|
interval(mm) |
500 |
|
Main line number of sprayer |
3 forward, 1 backward |
|
Operation rate (mu / h) |
60 |
