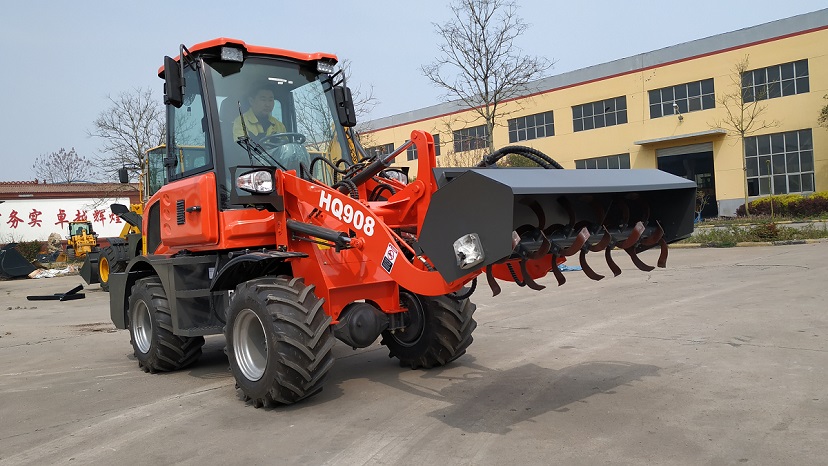

HQ908 is a compact mini loader with CE and TUV certificate, with a 29kw engine,800kg lift capacity, Cheap price, low fuel consumption. This mini loader very suitable for individual users working on farms.


  • Product No.: 01

Details

Small Wheel loader (HQ908) Features :



1, With CE, ISO,SGS certificate;
2, With compact design, and cheap price, very usefull in a Farm or a Garden.
3, With Europe style quick hitch , can attach many different kindsof tools in Europe .



Mini loader HQ908 Specifications:

1.0 ENGINE DETAILS



  (1) MODEL:



CHANGCHAI 390 or Euro III ,Euro 5 Type

  (2) RATED POWER:



29 KW or 36.8kw

  (3) RATED SPEED:

2200R/MIN(RPM)

  (4) MAX. TORQUE:

90/1800 N.M/MIN

  (5) FUEL CONSUMPTION RATION IN





252 G/KW.H

2.0 OPERATING SPECIFICATIONS



  (1) BUCKET CAPACITY:

0.5M3

  (2) LOADING CAPACITY:

800KG

  (3) OPERATION WEIGHT:

2790KG

  (4) LIFTING TIME:

≤8.0S

  (5) DRIVING SPEED:

0-12KM/H

  (6) MIN. TURNING RADIUS:

1989MM

  (7) MAX. TURNING ANGLE:

35°

3.0 OVERALL DIMENSIONS



  (1) OVERALL LENGTH(BUCKET ON GROUND)

4500MM

  (2) OVERALL HEIGHT:

2380 / 2480MM

  (3) OVERALL WIDTH:

1400MM

  (4) DUMPING HEIGHT:

2000MM

  (5) DUMPING REACH:

1100MM

  (6) MIN.GROUND CLEARANCE:

240MM

  (7) LIFTING HEIGHT:

3400MM

  (8) LIFTING DISTANCE:

1360MM

  (9) WHEEL BASE:

2170MM

4.0 BRAKE SYSTEM



  (1) SERVICE BRAKE:

FOUR WHEEL HYDRAULIC SPREAD-SHOED BRAKE

  (2) BREAKOUT FORCE:

28KN

5.0 TYRE:

8.25-16 / 31*15.5-15 Agricultural tire
