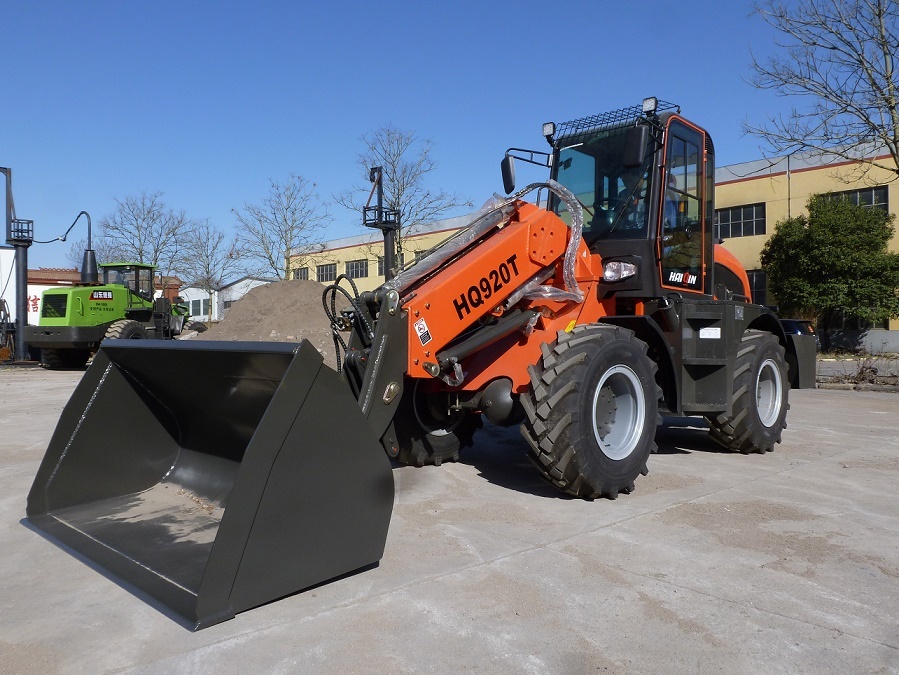

HQ920T telescopic loader with a 65kw engine and 2000kg loading capacity. The telescopic boom reach 4.5-6.0 m,This telescopic loader very suitable for farms, construction sites and so on.

Product No.: 18

Online Inquiry Email Us

Details

HQ920T telescopic loader with a 65kw engine and 2000kg loading capacity. The telehandler telescopic handler telescopic boom reach 4.5-6.0 m,This telescopic loader very suitable for farms, construction sites and so on.

HQ920T telescopic Loader Specifications :

1.0Engine Details

(1) Model: China YUNNEI or Euro 5 or Cummins for Option
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 60-65KW
(4) TITAN loader Rated Speed: 2400 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 180g/kw. H
2.0 Oujin telescopic loader Transmission System :Hydraulic converter + drive shaft + axles
3.0 TL2000 telescopic loader Bucket
(1) Bucket Capacity: 1.0-1.2 m3
(2) TAIAN Telescopic loader Bucket width: 1800mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment
4.0 Telescopic wheel loader Overall Dimensions
(1) Overall Length: 4900mm
(2) Articulated telescopic wheel loader Overall Height: 2720mm

(3) Overall Width: 1870mm
(4) Max. Lifting Height: 4500mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5600mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Forklift loader Joystick
(6) Telehandler Self levering
6.0 Telescopic boom loader Brake System: Service brake ,for wheels disc brake system .
