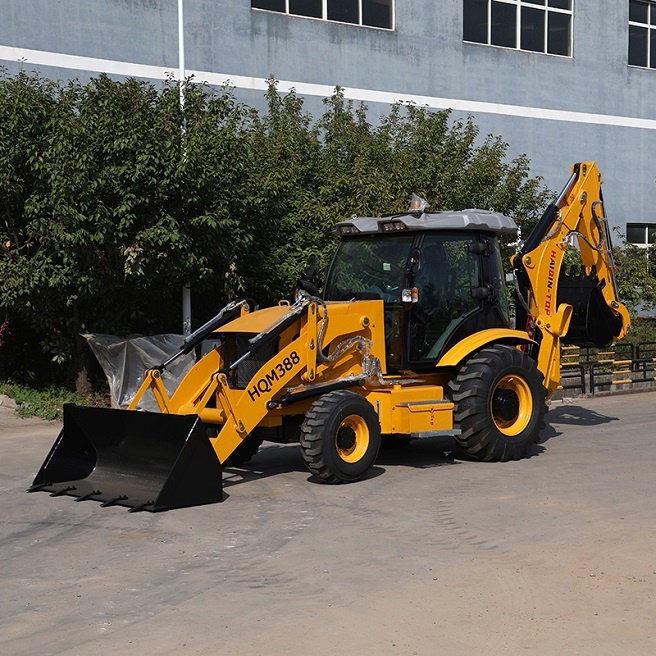

Strong Backhoe Loader HQM388 with one body design and Cummins engine .


  • Product No.: 26

Details

                    Strong Integrated Backhoe Loader HQM388 with Cummins Engine

Overall Operating Weight

7800KG

Final Reducer

Single Stage Final Reducer

Transport Dimension

Rated Loader of Axle

4/18.5t

mm L*W*H

6150×2250×3763

Transmission System

 Wheel base

2200mm

Torque Converter

 Min. Ground Clearance

300mm

Model

YJ280

Bucket Capacity

1.0m3

Type

Single-stage Three Elements

Breakout Force

38KN

Max. Efficiency

84.4%

Loading Lifting Capacity

2500KG

Inlet Pressure

0.4Mpa—0.55 Mpa

Bucket Dumping Height

2742mm

Outlet Pressure

1.2Mpa—1.5 Mpa

Bucket Dumping Distance

1062mm

Cooling Method

Oil-cooling Pressure Circulation

Digging Depth

52mm

Gearbox

Backhoe Capacity

0.3 m3

Type

Fixed Shaft Power Transmission

Max. Digging Depth

4082mm

Oil Pressure of Clutch

1373Kpa—1569 Kpa

Swing Angle of Excavator Grab

190o

Gears

Two Gears Ahead, Two Gears Astern

Max. Pulling Force

39KN

Max.Speed

22Km/h

Engine

Tyre

Model

YC4A105Z-T20

Model

14-17.5/19.5L-24

Type

 turbocharging four-stroke

Pressure of Front wheel

0.22 Mpa

Cylinder-Inside Diameter*Stroke

4—105

Pressure of Back Wheel

0.22 Mpa

Rated Power

75KW/100HP

Brake System

Rated Speed

2400r/min

Service Brake

Air Over Oil Caliper Brake

Min. Fuel Consumption

235g/kw.h

External Type

Max.Torque

310NM

Self-regulation

Displacement

4.3L

Self-balance

Steering System

Emergency Brake

Operation Power Implementing brake

Model of Steering Device

BZZ5-250

Manual Operation Power Terminating Brake

Steering Angle

±36 o

Hydraulic System

Min. turning radius

6581mm

Digging Power of Excavator Grab

46.5KN

Pressure of the system

12Mpa

Digging Power of Dipper

31KN

Axle

Bucket Lifting Time

5.4S

Manufacturer

Feicheng Axle Factory

Bucket Lowering Time

3.1S

Main Transmission Type

Double Reduction

Bucket Discharge Time

2.0S

The parameters are subject to change without notice
