Large Wheel loader HQ930

Large Wheel loader HQ930
  • Large Wheel loader HQ930
  • Large Wheel loader HQ930
  • Large Wheel loader HQ930
  • Large Wheel loader HQ930

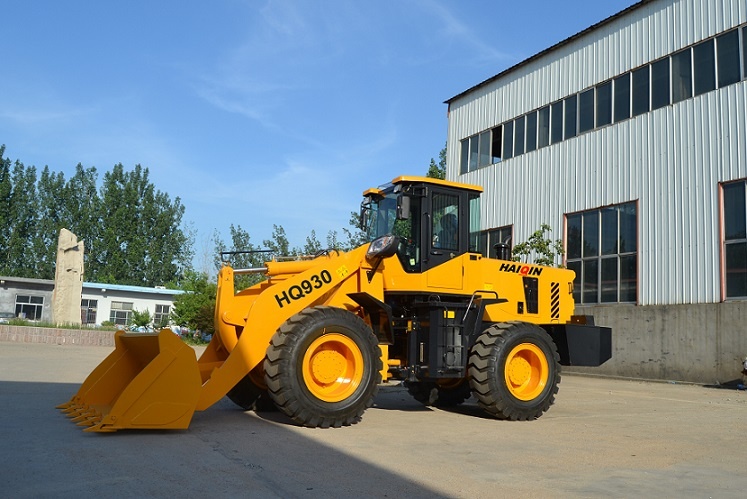

HQ930 wheel loader,3.0ton wheel loader with Weichai 92kw or Cummins engine, this 3ton loader with 3000kg lift capacity.


  • Product No.: 11

Details

Large Wheel Loader HQ930 Specifications:

3.0ton wheel loader Bucket capacity:2.0m 3
3.0ton shovel loader Rated load:3000kg
3.0ton front loader Transportation dimension(L*W*H):6500mm*2230mm*2820mm
3ton wheel loader Wheelbase:2760mm
SDLG936 Wheel loader Thread:1800mm
Max. Breakout,force:138KN
Max. Dumping height:3250mm
3.0ton china wheel loader Dump distance:1200mm
Operating weight:8000kg
Engine Brand and Model:WEICHAI 92KW or Cummins
NEO 933L WHEEL LOADER Max. Torque:860N.m
Normal fuel consumption:162g/kW.h
ZL30F loader Total displacement:6L
Transmission:Full-power shift,counter shaft type
Number of gear:4 forward,2 reverse
ZL30 QINGZHOU LOADER Max. travel speed:35-42KM/H
Main reducer Pattern:Arc taper gear model ration of first grade
LQ936 LOADER Tire Size:16/70-24 or 17.5-25
Service brake:Air assisted oil disc on four wheel
Parking brake:Soft axle control,outside bunch drum type
