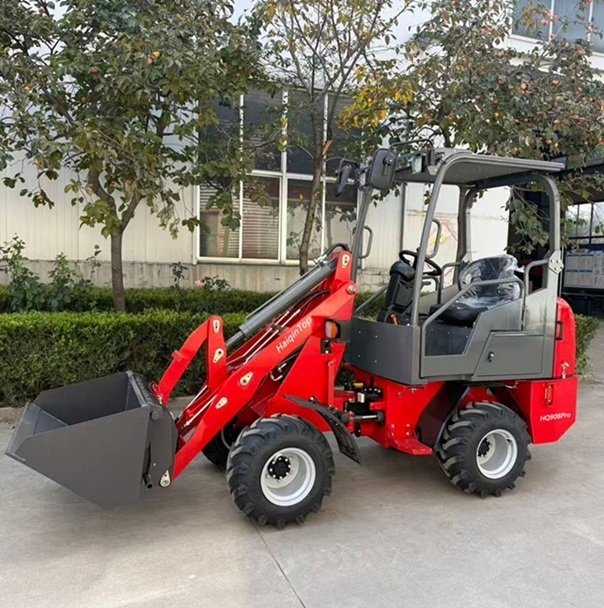

New HQ908Pro Mini Loader with Kubota Engine

Performance

Standard Rated Load（t)

0.8

Shovel loader Max loading weight (t)

1.0

Bucket rated capacity（m)³

0.45

Dumping height（mm)
（at 45°）

1850

Lifting Height（mm)

3180

Dumping Reach（mm)

730

Max. Lifting weight（kg）

800

Max. Excavation Force（kn)

1000

Front loader Max. Grade ability

30°

Max. Turning Angel

30°±1

Swing degree of the rear axle

7°

Dimensions. &.Weight

Overall length（Bucket on Ground position）mm

3740

Wheel width（overall width）

1420

Overall Height(mm)

2380

Avant hoflader Wheel base(mm)

1020

Min Ground Clearance(mm)

240

Net Weight（kg)

2100kg

Engine

Engine model

KUBOTA 1105 (or Xinchai for option)

POWER

18.2kw

SPEED

3000r/min

   Farmer loader Tyres

Type

31*15.5-15

working pressure（mpa)

0.3

Qty

4

Steering System

Type of Steering Hydraulic System

Full Hydraulic Steering System

System Pressure（mpa)

16

Type of Steering Pump

External Gear Pump

Steering Cylinder Bore（mm)

63

Braking System

Service Brake

Drum Brake

Brake Drum（mm)

250

Parking Brake

Drum Brake

Mini charger Distribution Valve

Model

DL10

Type

Triple valve stem

Dumping Cylinder-Bore

Ø80

Lifting Cylinder-Bore

Ø63

Oil Capacity

Hydraulic Oil Tank（L)

30

Brake Fluid（L)

0.8
