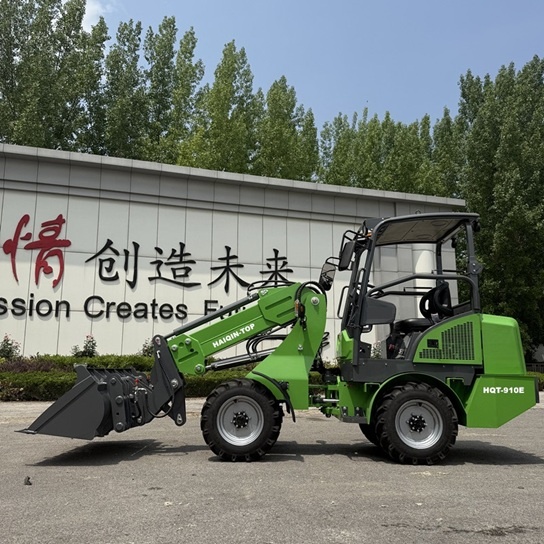

Electric Telescopic Loader HQT-910E
Electric Battery telescopic loader HQT-910E with total battery power.
Overall length（mm:4580
Bucket width（overall width）（mm）:1260/1300
Overall Height（mm）:2450
Wheelbase（mm）:1580
Tire spacing（mm）:1000
Min Ground Clearance(mm):215
Net Weigh(kg)t:2840
Rated Load（kg):1000
Bucket rated capacity（m³:0.45
Dumping height(Arm extension/contraction)（mm）:2450\3150
Lifting Height(Arm extension/contraction)（mm:3680\4350
Dumping Reach (Arm extension/contraction)（mm）:800\1200
Max. Lifting weight (Arm extension/contraction)（kg:1000\500
Max. Excavation Force (Arm extension/contraction)（kg:1100\600
Max. Grade ability （°）:18
Max. Turning Angel （°）:29±1
No.of battery groups :12
Telescopic electric loader Rated Voltage（v）:72
Hydraulic System Voltage（v）:72
Hydraulic System Power（W）:5000
Walking System Voltage（v）:72
Walking System Power（W）:4000* 2
Hydraulic Oil Tank（L):54
Brake Fluid（L):0.8
