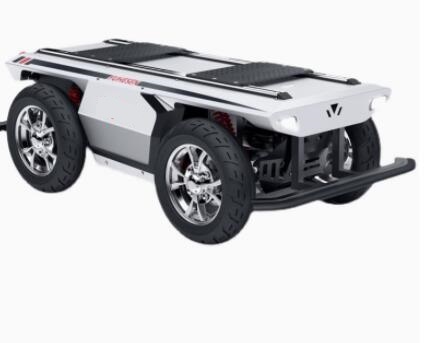

ROS wheeled robot
ROS wheeled robot for intelligent distribution inspection of transportation and logistics in park ports, equipped with Ackermann steering line control chassis
Size: 1600 * 820 * 520MM
Chassis weight: 176KG
Structural form: front wheel drive, rear wheel drive, Ackermann steering
Suspension: integral bridge suspension
Ground clearance: 120MM
Wheelbase: 850MM
Track width: 645MM
Tire diameter: 420MM
Drive motor: 1800W DC brushless
Battery: 48V/40AH
Charging time: 4H
Charging method: 48V/10A charger, manual charging
External power supply: 48V/20A-24V/15A-12V/15A

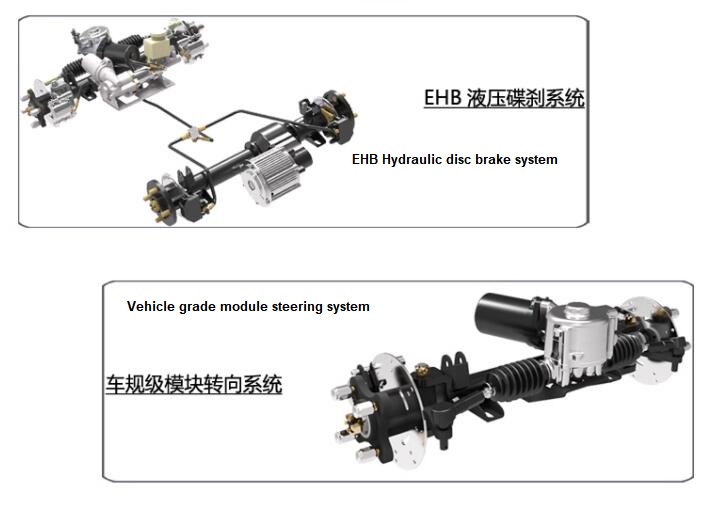

Braking method: hydraulic disc brake+motor brake
Parking method: electromagnetic brake

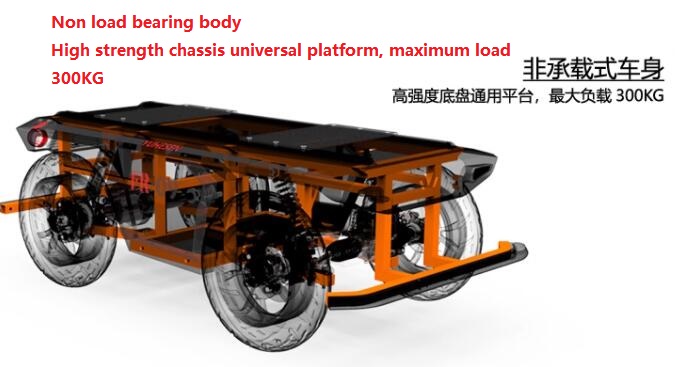

Vertical load: 300KG
Operating speed: 0-18KM/H
Range: 40KM
Water wading depth: 100mm
Maximum climbing angle: 30 degrees at full load
Size: 1600 * 820 * 520MM
Chassis weight: 176KG
Structural form: front wheel drive, rear wheel drive, Ackermann steering
Suspension: integral bridge suspension
Ground clearance: 120MM
Wheelbase: 850MM
Track width: 645MM
Tire diameter: 420MM
Drive motor: 1800W DC brushless
Battery: 48V/40AH
Charging time: 4H
Charging method: 48V/10A charger, manual charging
External power supply: 48V/20A-24V/15A-12V/15A
Braking method: hydraulic disc brake+motor brake
Parking method: electromagnetic brake
Vertical load: 300KG
Operating speed: 0-18KM/H
Range: 40KM
Water wading depth: 100mm
Maximum climbing angle: 30 degrees at full load
